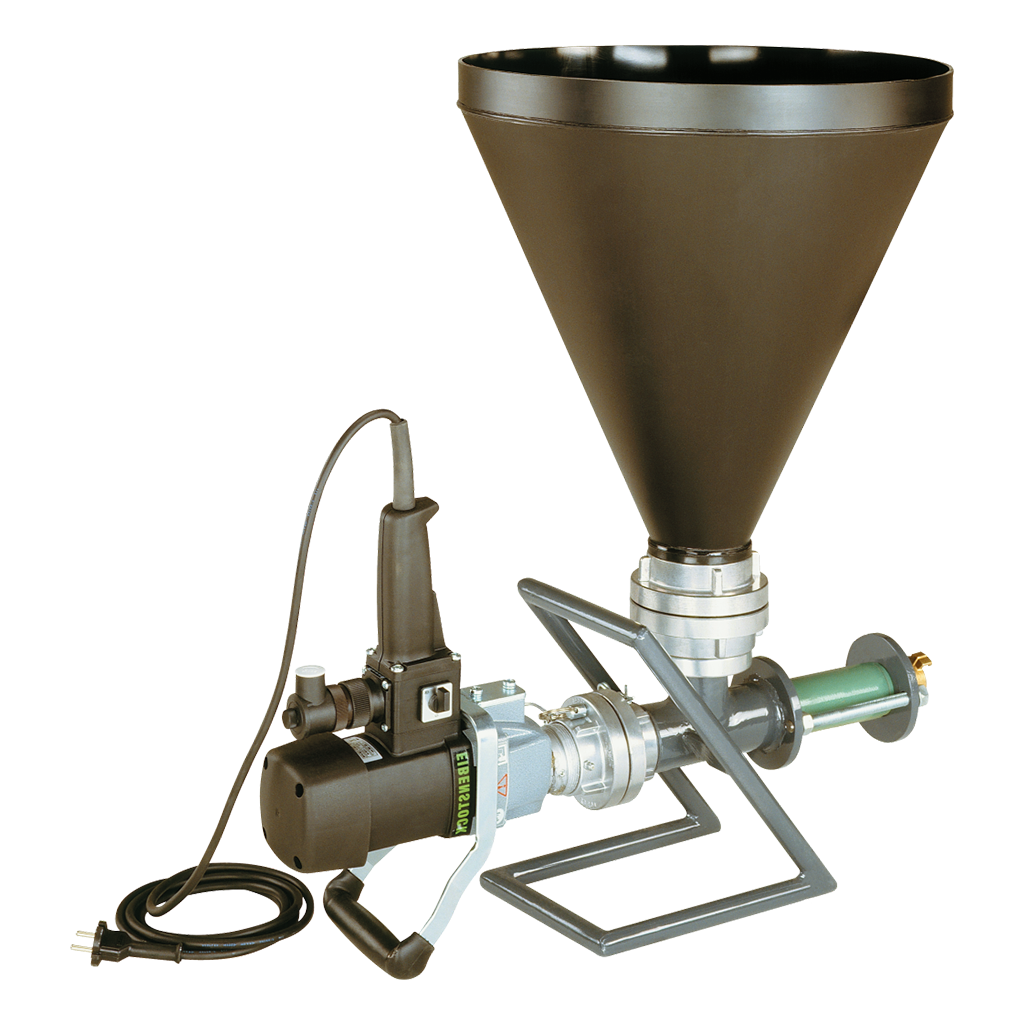

Screw pump BMP5 230V basic pump
The BMP 5 is a small, electric screw pump that can be used both for pure backfilling and for grouting in a pressure range of
max. 25 bar. Both unfilled aqueous solutions (KSE products, silicate solutions) and mineral solutions can be processed.
Products with good flowability and a grain size of up to 2.0 mm. The application rate can be infinitely adjusted.
The material can be supplied via a 30 or 60 liter hopper. With corresponding accessories (spray lance, automatic gun, etc.)
also suitable for spraying. Due to the high delivery rate (up to 6 ltr / min), efficient backfilling is guaranteed. Power connection
230 V / 50 Hz. Also available in 110 V.
Produktnummer:
BMP5100
Kstegorie: BMP5
Einsatzgebiete: Clay paint and materials with a small grain size, Concrete cosmetics, Concrete filler, Emulsion paints, Hyrophobizations, Lime paints, Mineral plasters, Multi-stage injection, Sealing slurry, Synthetic resin plasters
Weight | 25 kg |
---|---|
max capacity in ltr/min | 6 |
Max. delivery distance | 30 |
Max. delivery height | 5 |
Motor in kW | 1, 15 |
max. particle size in mm | 2 |
Max. pressure in bar | 15 |
Container volume in ltr. | 30 |
Downloads are currently still in development…..
