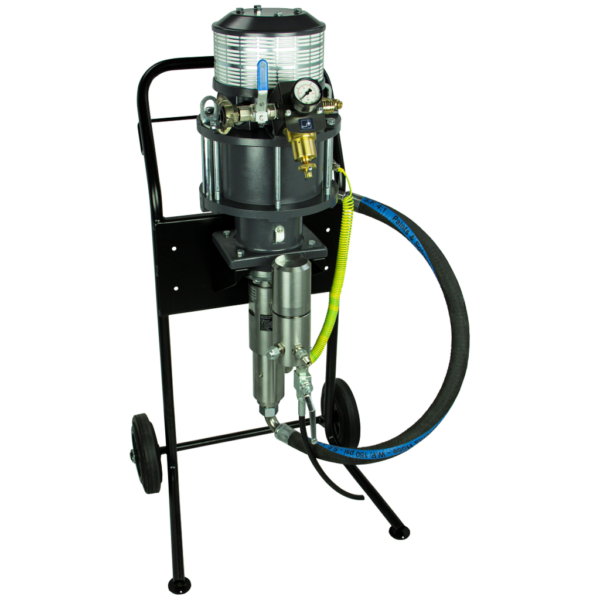

Pneumatic Piston Pump BMP 433-2

High Pressure Pump 27.33 RS, High Pressure Filter Type N01R, AirCombi Pressure Regulator 3/8 ́ ́, Frame or Telescopic Carriage, Upper Tank 6L, Release Agent, Grounding Cable & BA

Our Pneumatic Piston Pumps are a great choice if you are looking for a low-wear and easy-to-maintain option. Since they do not require a power source, they are also ideally suited for EX areas. The fact that the material-carrying parts are made of stainless steel makes them particularly suitable for use with water-based paints. In addition, it can be used as both an airless and an AirCombi pump. The pressure control unit makes it easy to operate the pump. Minimal pulsation is ensured by the high-pressure filter with filter insert. With the many different pump mounts (tripod, carriage, tank, etc.), you can adapt our pumps to your project.

Produktnummer: HÜ81-BM80535 Kstegorie: Einsatzgebiete: , , , ,
Pressure ratio

33 : 1

Free flow rate in l/min

2, 4

Delivery rate double stroke /ccm

27

Max. air input in bar

8

Max. pressure in bar

264

Piston air diameter /mm

85

Piston stroke air motor /mm

75

Downloads are currently still in development…..
