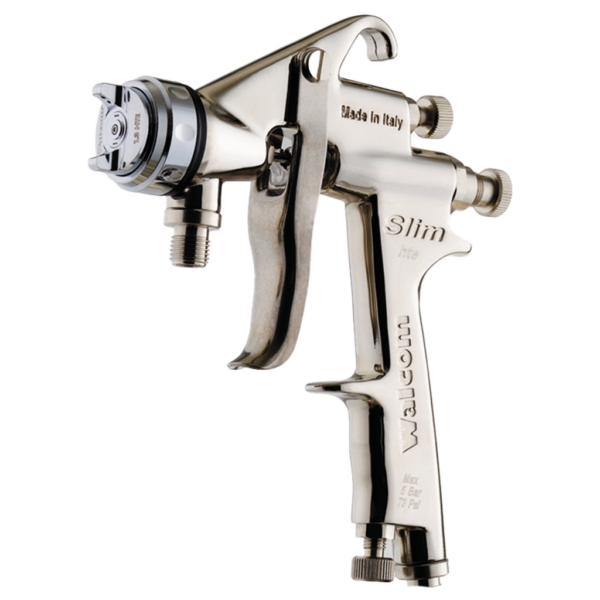

Slim SP HTE SR
Suction gun for: pressure tanks and low-pressure pumps, material inlet G1/4″, without pressure regulator and pressure gauge
The HTE system combines the advantages of the high volume of air from the conventional spraying technology with the high transmission rate and the advantages of an HVLP gun.
Highly recommended for topcoats in the Metal, wood and industrial sectors.
H T E = High transfer efficiency = material transfer rate approx. 80%
| Weight | 545 kg |
|---|---|
| Pressure | 2 – 2, 5 bar |
| Casing | Aluminium chrome-plated |
| Nozzle and needle | AISI 303 INOX |
| Air cap | Nickel-plated brass |
| Air consumption | 220 – 260 L/min |
| Spraying distance | 15 – 20 cm |
| Nozzle mm | 0 – 1, 1, 2, 3 – 1, 5 – 1, 7 – 1, 9 – 2 |
Downloads are currently still in development…..
